GSV-182

Control part

Voltage AC90~240V/50Hz~60Hz, Free Voltage ALARM INPUT 2 Channel shut off part output DC 12V/500mA±10% Power consumption Max 22W Function(8button) Open s/w, Close s/w Valve s/w : Valve close time set up Time s/w : Current time set up Stop s/w : Buzzer and voice output stop Reset s/w : Set reset Operating Temp. & Hum. -20 ~ 50 ℃, under Rh95% Open/Close method Manual and Remote open/close shut off part in use SV-20A, SV-20B, SV-20C Dimensions W70 x H120 x D51 Weight(g) 383 shut off part Control system Limit control and Time control system Communication type RS-485 communication(Normal) PLC communication(option) Additional function Voice service for the LCD Display of each function

shut off part

MODEL SV-20H shut off Method Geared Motor Standard Valve 20A Voltage DC12V±/500mA±30% Current Min 200㎃, Max 500㎃ Manual operation Clutch push method Torque (Kgf·cm) 65 Operating Temp. & Hum. -20~50℃, under Rh95% Open/Close speed Within 10 seconds Dimmensions(mm) W106 X H86 X D66 Weight (g) 505(Valve, Geared, Motor)

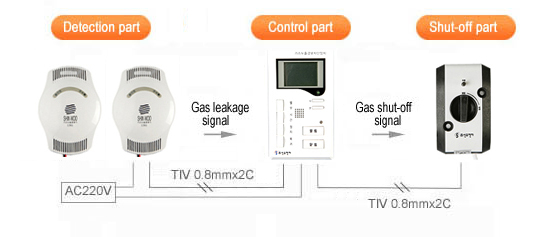

It has the function of remote switch gear and automatic shut off for gas leakage. It is available to discern the open/close status from the control device. It allows rapid gas shut off of within 10 seconds. It can be used for the valves of gas pipes. It can be used for the automatic control system of various plants and air-conditioning and heating equipments of industrial facilities. It can be open and closed manually in case of power failure or emergency.
