GSV-102W

Control part	Voltage AC 220V/ 60Hz (SMPS type) ALARM INPUT 2 Channel Shut off part output DC 12V/500mA±10% Function(3button) Open, Close, Buzzer stop, Reset Operating Temp. & Hum. -20 ~ 50 ℃, under Rh95% Open/Close method Remote open/close Shut off part in use SV-20A, SV-25A, SV-20B Dimensions W86× H130× D45 Weight(g) 290
Shut off part	MODEL SV-20H Shut off Method Geared Motor Standard Valve 20A Voltage DC12V±/500mA±30% Current Min 200㎃, Max 500㎃ Manual operation Clutch push method Torque (Kgf·cm) 65 Operating Temp. & Hum. -20~50℃, under Rh95% Open/Close speed Within 10 seconds Dimmensions(mm) W106 X H86 X D66 Weight (g) 505(Valve, Geared, Motor)

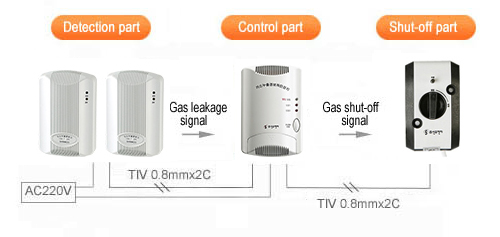

It has the function of remote switch gear and automatic shut off for gas leakage. It is available to discern the open/close status from the control device. It allows rapid gas Shut off of within 10 seconds. It can be used for the valves of gas pipes. It can be used interlocking alarm up to 9 circuits. It can be used for the automatic control system of various plants and air-conditioning and heating equipments of industrial facilities. It can be open and closed manually in case of power failure or emergency.
